Yellow Polycarbonate Solar Road Cats Eyes Road Markings Path Deck Dock LED Light
- Super, Super Bright!! Automatic on at dusk off at dawn
- Durable all weather resistant, long life LEDs
- Visible from 850 yards, load capacity 20 tons
- Easy to assemble, rechargeable battery included
- New in Box
- Solar road studs are flashing solar cell powered LED maintenance-free lighting devices used in road construction to delineate road edges and centrelines. Embedded in the road surface, they are an electronic improvement on the traditional cat's eyes in that they may give drivers more than a thirty-second reaction window compared with about 3 seconds for conventional reflective devices. The intense brightness of the LEDs makes them easily visible at distances of about 900 m under favourable conditions.
Road Stud-P26.pdf
Specification:
| Product | Solar Road Cat Eye Marker |
| Model Number | SRS-003 |
| Color | Yellow, Blue, Green and White |
| Material | Plastic PC shell |
| Size | 100x100x20 mm |
| Weight | 220 g/piece |
| Light intensity | 8000 mcd |
| Working Time | At least 4 days after battery fully charged |
| Charging Time | 3 hours in sunny day,6 hours in rainy day |
| Life Time | More than 3 years |
| Application | Highway |
Feature:
1. Light Source:Φ5 high brightness LED * 8pcs Available colors:yellow,red,white.blue,green
2. Flash styles: flash 90±10 times/min
3. Visible distance:≥1000M(in the dark)
4. Power:Ni-MH 1.2V 1600mAh 0.4W monocrystalline silicon solar cell.
5. Working time:120 hours after full charged.
6. Resist compression: 20 tons.
7. IP Rate:IP68.
8. Material:Plastic PC shell
9. Product Lifespan:3-5 years.
10. Diameter:115 mm.
11. Weight:220 g/piece.
12. Work temperature:-20°C~60°C.
Installation of Solar Road Stud
1. Install at two sides of road,make sure sunshine could shoot on solar panel on road stud.
2. Using road stud resin or road stud screw to fix.
Application of Solar Road Stud
1. Highway entrance (ramp), bend larger pavement, toll station entrances and exits.
2. At the school gate, village road, intersection, traffic lights, hotels, parks, underground garage entrance (export).

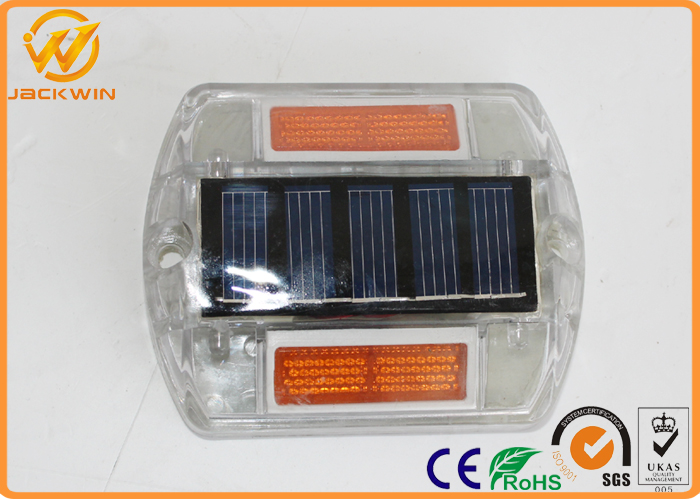

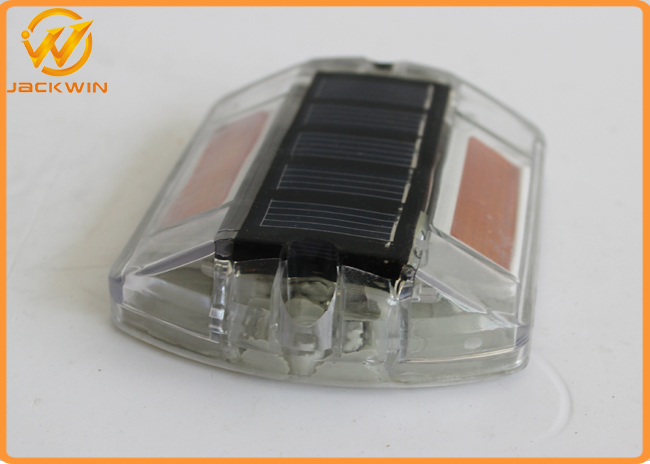

Solar Road Cat Eye Marker Photos:
Key Words:road stud reflectors lens,road stud pavement marker,road reflectors cat eyes
Company Profile
JACKWIN is a professional supplier, specialized in developing, designing, manufacturing and exporting a wide range of roadway safety,parking,site and construction facilities.We have a broad range of products that we self-designed with excellent quality for clients' choice and the strong ability for injection and blowing moulding process in our R&D department makes plastic products in various sizes, shapes and colors with superior strength in short lead-time with lower developing and manufacturing cost to satisfy customers from allover the world.
Our products cover the markets in North and South America, Europe,East Asia, the Middle East and Africa and we emphasize on goods quality to meet clients' requirements and win markets in their areas.
We have a strict and perfect Quality Control System that makes each process have high quality standard not only in material and half-products but in final products.
"High Quality, Reasonable Price, Best Service, Right & Prompt Delivery" is our company's philosophy, we commit ourselves to innovate products to meet various needs of our clients and promote equal and mutual-benefits business relationships.
Our company can supply OEM and ODM services for customers all over the world, welcome to visit our website and inquire for catalogue and price at any time.
