2-Channel Guardian Cable Protector for 1.125" diameter cables
2 Channels Rubber Cable Protector Ramp Cord Cover with 20 Ton Weight Capacity 1000 * 250 * 50mm
Cable Ramps / Protectors
Minimize tripping hazards and protect costly cables around the warehouse, job site, studio, or garage with one of our affordable cable management systems. For the lowest prices and best selection of high-weight capacity cable protectors and floor cord covers for construction, commercial, and industrial applications, turn to the experts at www.traffic-safetyequipment.com.
Protect up to two 1.125" diameter cables and wires from vehicle, forklift, and heavy equipment traffic with our Guardian dual-channel cable protector. Made from durable heavy-duty rubber, this cable ramp can support vehicles weighing up to 12,000 lbs per axle. Connect straight sections to left or right curves using the interlocking trapezoid connectors for a compete cable management system.
- Protects 1.125" diameter wires and cables
- Supports forklifts and other vehicles weighing up to 12,000 lbs per axle
- Features two channels with gaps for easy cable management
- Commercial-grade rubber construction weighs 15.75 lbs
- Uses an interlocking trapezoid connector system to link additional straight or curved pieces
Our dual-channel Guardian cable ramp was designed specifically to protect wires and cables from being damaged by forklifts and other vehicles weighing up to 12,000 lbs per axle. Interlocking trapezoid connectors at each end of the cable protector link multiple ramps together to cover greater lengths of cable. This heavy-duty cable protector features a smooth 28° incline for a gradual approach angle and two channels for running 1.125" diameter cables through. There are also four integrated safety reflectors and two 2" wide channel gaps for crossing cables from one channel to the other, if necessary. Featuring a heavy-duty commercial-grade rubber base and a reinforced, hinged PVC lid, this Guardian cable protector comes with a one year manufacturer's warranty.
Outside Diameter: 1.125"
Weight Capacity:12,000 lbs per axle
Channels: 2
Weight: 15.75 lbs
Material: Rubber

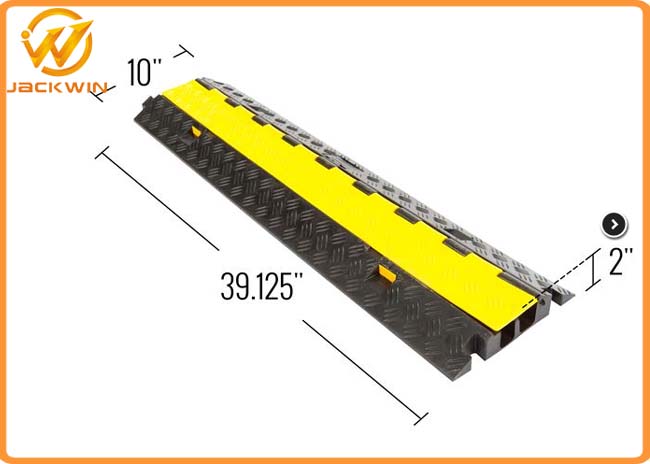

Length:39.125"
Width:10"
Height:2"
Connector: Trapezoid
Product Features
- Great for indoor or outdoor use
- Dual 1.125" x 1.125" cable channels
- Interlocking connectors hook multiple cable protector pieces together
- Bright yellow safety lid with warning symbols
- 12,000 lb. capacity per axle allows heavy vehicles such as forklifts to cross cables
- 28° incline smooth approach angle
- 2" channel gaps for cable cross-over
- Straight pieces (DH-CP-5) have (4) integrated safety reflectors
- Each turn piece (DH-CP-5R & DH-CP-5L) provides a 45° bend
- Heavy duty commercial grade rubber base with a PVC flap
- Includes a 1 year warranty
- For other sizes, please view our Cable Ramps & Protectors selection
Solid commercial cord concealer
For frequent commercial audio/video presentations, these protectors do a great job keeping cables concealed and protected while having a very visible yellow stripe, to ensure the device does not become a tripping hazard. Before you buy a cheap cable concealer from the big box stores, consider these for your commercial cable concealment needs.
Specifications:
| Product Name | 2-Channel Guardian Cable Protector |
| Outer Size | 1000*250*50mm |
| Channel Size | 35*30mm |
| Material | Rubber for body and plastic for cover |
| Weight | 7kg |
| Color | Black,Yellow |
| Weight Capacity | 20 Ton |
| Packaging | 2 pieces/carton |
| Application | Rental,Hotel,Staging,Cinema |
| Warranty | 5 Years |
| Brand | Jackwin |
| Place of original | China |
Description:
1, Great for indoor or outdoor use
2, Interlocking connectors hook multiple cable protector pieces together.
3, Bright yellow safety lid with warning symbols.
4, Heavy duty commercial grade molded thermoplastic rubber
5, Cable protectors are made of high strength rubber, so they have highly capacity of resistance
pressure.
6, Cable Protectors can be easily installed.
7, Temperature range: -32℃ ~ +65℃.
Applications:
Warehouse,Plazza,Concert,Conference place,large gymanasium,sound and audio rental,hotel,staging,cinema.
Competitive Advantage:
1.These rubber protectors are extremely durable,easy to install,and protect cords and cables
2. Multiple sizes for various cable diameters
3. Reduce tripping hazards
4. Diamond plate slip resistant surface for excellent traction
5. Low angle ramps provide easy access for carts and pedestrians

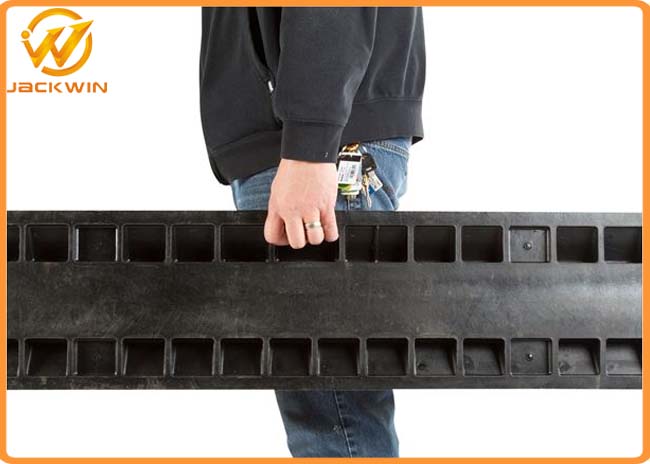

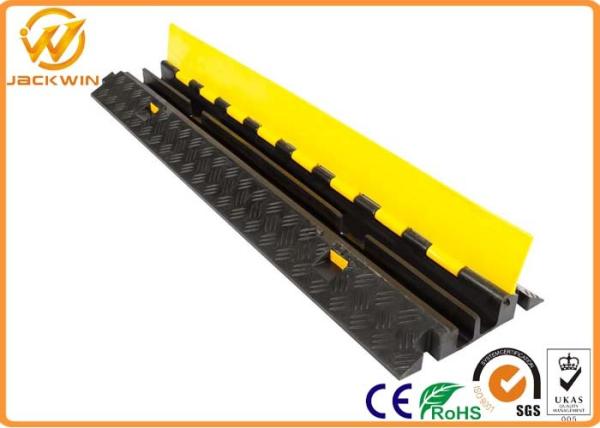

Rubber 2 Channels Cable Protector details pictures
What is our aftersale Service?
1.Five years warranty policy.
2.We test all the products 3 times before delivery.
3.Good delivery time.
What is our payment?
Payment: L/C, T/T Western Union, Paypal
What is our product packaging?
Woven Bag,Export Carton, Pallets
